Part Number : TPS70916

Function : 150-mA, 30-V, Ultra-Low IQ, Wide Input Low-Dropout Regulator

Package : SOT-23-5, SOT-223-4, SON-6 Type

Maker : Texas Instruments

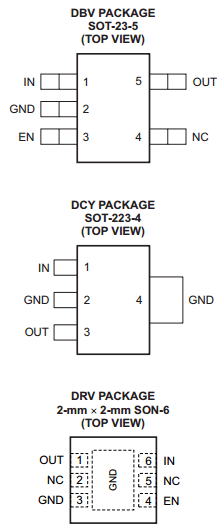

Pinouts :
TPS70916 datasheet

Description :

The TPS70916, TPS709xx series of linear regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature.

Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety.



1. Ultralow IQ: 1 µA

2. Reverse Current Protection

3. Low ISHUTDOWN: 150 nA

4. Input Voltage Range: 2.7 V to 30 V

5. Supports 200-mA Peak Output
