Part Number : TLC6C598-Q1
Function : Power Logic 8-BIT SHIFT REGISTER LED DRIVER
Package : SOIC, TSSOP 16-Pin Type
Maker : Texas Instruments
Image :
Description :
The TLC6C598-Q1 is a monolithic, medium-voltage, low-current power 8-bit shift register designed for use in systems that require relatively moderate load power, such as LEDs.

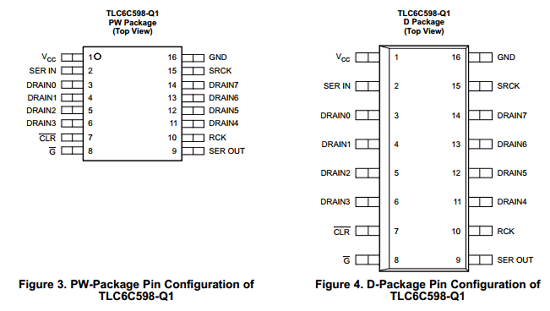

Pinouts :
Features
1. Qualified for Automotive Applications
2. AEC-Q100 Qualified With the Following Results:
(1) Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
(2) Device HBM ESD Classification Level H2
(3) Device CDM ESD Classification Level C3B
3. Wide Vcc From 3 V to 5.5 V
4. Output Maximum Rating of.40 V
Official Homepage : https://www.ti.com/product/TLC6C598-Q1
Datasheet PDF Download :
Others datasheet of same file :
6C598, TLC6C598, TLC6C598Q1, TLC6C598QDRQ1, TLC6C598QPWRQ1
