Part Number : TDA7421
Function : AM/FM TUNER FOR CAR RADIO AND HI-FI APPLICATIONS
Package : TQFP 64 Pin
Maker : STMicroelectronics
Image :
Description :
The TDA7421 is a high performance tuner circuit that integrates AM/FM sections, IF counter and PLL synthesizer on a single chip.
Pinout
Use of BICMOS technology allows the implemen tation of tuning functions with a minimum of external components. Value spread of external components can be fully compensated by means of on-chip electrical adjustment controlled by external uP.
Features :
1. FRONT-END FOR AM/FM RECEIVERS
2. UP-CONVERSION ARCHITECTURE FOR AM
3. HIGH SPEED PLL WITH INLOCK DETECTOR FOR OPTIMIZED RDS APPLICATIONS
4. SINGLE FREQUENCY REFERENCE FOR AM/FM
5. AM/FM STATION DETECTOR

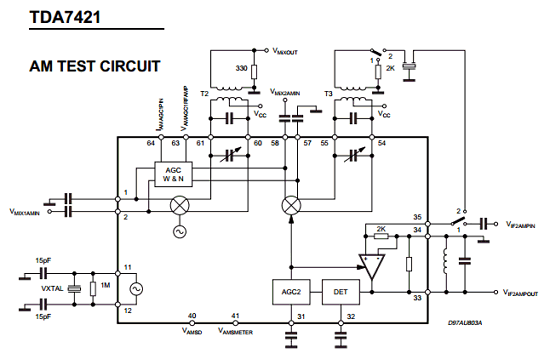

Application Circuit :
Datasheet PDF Download :
Others datasheet of same file : TDA-7421
