Part Number : TA8440HQ
Function : POWER AMPLIFIER FOR A COLOR TELEVISION
Package : ZIP 12 Pin Type
Maker : Toshiba
Pinouts :
Description :
The TA8440H / TA8440HQ is a full-bridge driver for selecting the forward and reverse running of a motor with brushes and can control four modes: forward, reverse, stop and braking. The motor driving unit and the control unit have a separate power supply line, and the TA8440H/HQ can also be used as a stepping motor driver.

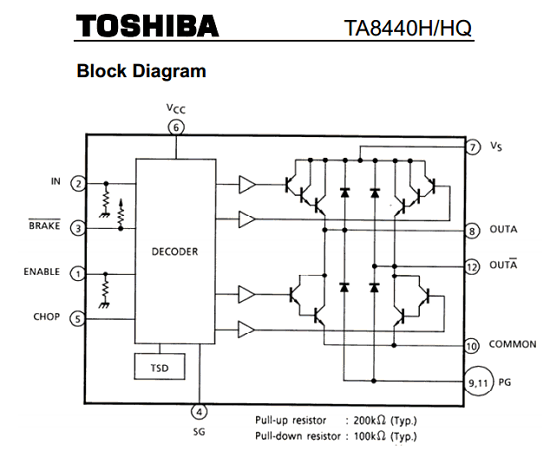

Block Diagram
1. 4 modes of forward, reverse, stop, and braking are available and a back-electromotive force absorbing diode has been built-in.
2. Thermal shutdown circuit incorporated
3. Input is compatible with CMOS.
4. Built-in input pull-up resistor.
Datasheet PDF Download :
Others datasheet of same file : TA8440H, TA8440
