Part Number : STR-X6750F

Function : Power IC for Quasi-Resonant Type Switching Power Supply

Package : TO-3PF-7L type

Maker : Sanken Electric co.,ltd.

Pinouts :
STR-X6750F datasheet

Description :

The STR-X6750F is power IC for quasi-resonant type switching power supply, incorporating a power  OSFET and a controller IC. The product achieves high efficiency and low noise power supply systems by the quasi-resonant operation.

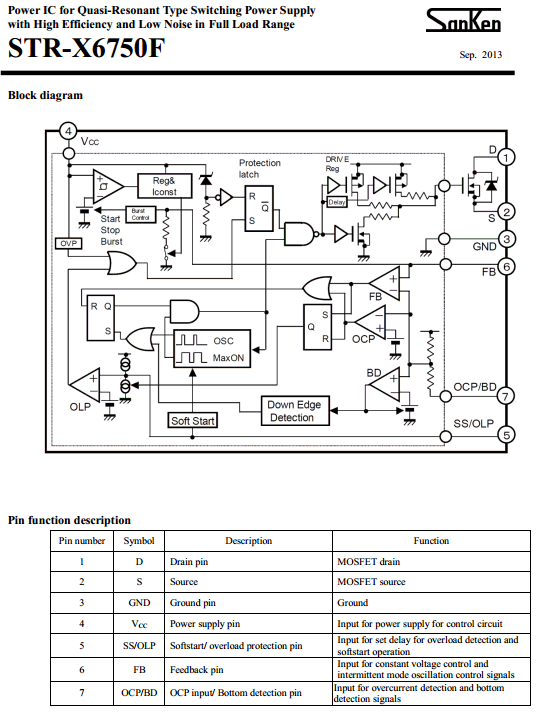

Block Diagram


1. Current mode control

2. Built-in soft start function

3. Step-drive function, reducing swtiching noise

4. Input compensation at overcurrent
