Part Number : STR-W6753
Function : STR-W6753 / Quasi-Resonant Switching Regulator
Package : TO-220 Type
Maker : Allegro MicroSystems

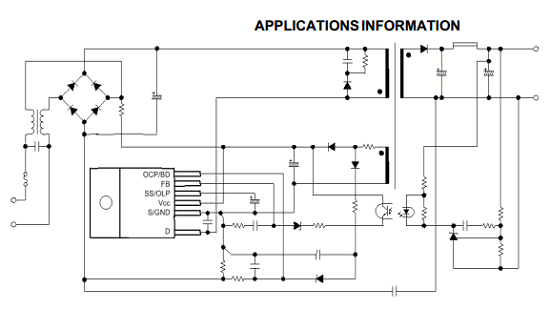

Image :
Description :
The STR-W6753 is a quasi-resonant regulator specifically designed to satisfy the requirements for increased integration and reliability in switch-mode power supplies. It incorporates a primary control and drive circuit with an avalanche-rated power MOSFET.
1. Rugged 650 V Avalanche-Rated MOSFET Simplified Surge Absorption No VDSS Derating Required
2. 1.7 Ω Maximum rDS(on)
3. Two Operational Modes by Automatic Switching : Quasi-Resonant Mode for Normal Operation
Burst Mode for Standby Operation or Light Loads
4. Automatic or Manually Triggered Burst Standby Input Power <0.1 W at No Load
5. Low Operating Current (6 mA typ)
Datasheet PDF Download :
Others datasheet of same file : STRW6753, STRW6753
