Part Number : STR-W6053, STRW6053

Function : Off-Line PWM Controllers with Integrated Power MOSFET

Package : TO-220-6 Pin Type

Maker : Sanken Electric co.,ltd.

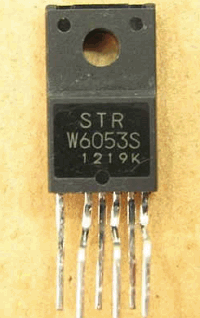

Image :
STR-W6053 datasheet

Description :

The STR-W6053, STR-W6000S series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions. The product achieves high cost-performance power supply systems with few external components.

Pinouts :



1. Current Mode Type PWM Control

2. Brown-In and Brown-Out function

3. Auto Standby Function

Datasheet PDF Download :
STR-W6053 pdf

Others datasheet of same file :

STR-W6051, STR-W6051S, STR-W6052, STR-W6052S, STRW6053, STR-W6053S
