Part Number : STA5150

Function : 200W, MONO BASH POWER AMPLIFIER

Package : Flexawatt 27 Type

Maker : STMicroelectronics

Image :
STA5150 datasheet

Description :

The STA5150 is a fully integrated power module designed to implement a BASH amplifier when used in conjunction with STABP01 digital processor.

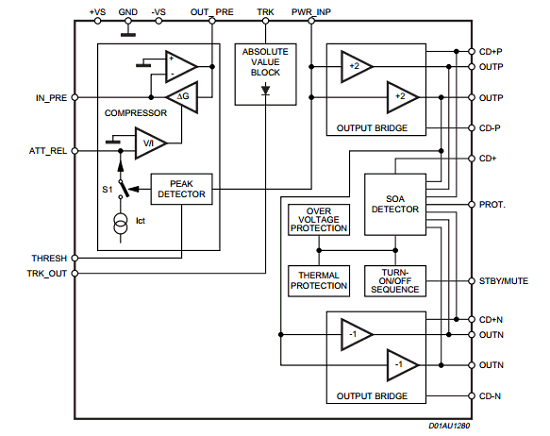

Block Diagram

Features

1. HIGH DYNAMIC PREAMPLIFIER INPUT STAGES

2. EXTERNAL PROGRAMMABLE FEEDBACK TYPE COMPRESSORS

3. AC COUPLED INPUT TO CLASS AB BRIDGE OUTPUT AMPLIFIER

4. PRECISION RECTIFIERS TO DRIVE THE DIGITAL CONVERTER

5. ON-OFF SEQUENCE/ TIMER WITH MUTE AND STANDBY

Pinout


Datasheet PDF Download :
STA5150 pdf

Others datasheet of same file : STA5150
