Part Number : SP3490EN
Function : +3.3V Low Power Full Duplex RS-485 Transceivers with 10Mbps Data Rate
Package : DIP, SO 8 Pin Type
Maker : Signal Processing Technologies
Image :
Description :
The SP3490, SP3490EN and the SP3491 are +3.3V low power full duplex transceivers that meet the specifications of the RS-485 and RS-422 serial protocols. These devices are pin-to-pin compatible with the Sipex SP490 and SP491 devices as well as popular industry standards.
The SP3490 and the SP3491 feature Sipex's BiCMOS process, allowing low power operation without sacrificing performance.

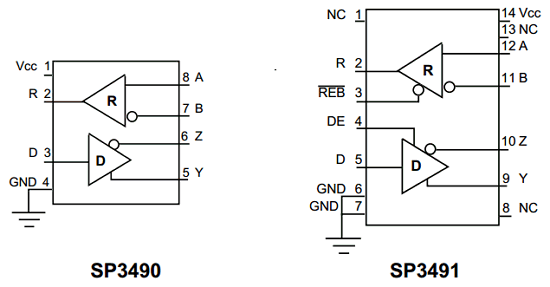

Pinouts :
1. Full Duplex RS-485 and RS-422 Transceivers
2. Operates from a single +3.3V supply
3. Interoperable with +5.0V logic
4. Driver/Receiver Tri-state Enable Lines
Datasheet PDF Download :
Others datasheet of same file : SP3490, SP3490C, SP3490CN, SP3490CP, SP3490E
