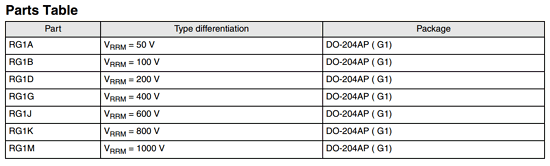

Part Number : RG1J, RG1A to RG1M Series
Function : 600V, Fast Sinterglass Diode
Package : DO-204AP type
Maker : Vishay Semiconductors
Image :
Description :
• High temperature metallurgically bonded construction
• Hermetically sealed package
• Cavity-free glass passivated junction
• 1.0 ampere operation at Tamb = 55 °C with no thermal runaway
• Fast switching for high efficiency
Mechanical Data
1. Case : Sintered glass case, JEDEC DO-204AP
2. Terminals : Solder plated axial leads, solderable per MILSTD- 750, Method 2026
3. Polarity: Color band denotes cathode end
4. Mounting Position: Any
5. Weight: 560 mg
Others datasheet of same file : RG1A, RG1B, RG1D, RG1GDatasheet PDF Download :
