Part Number : PIC16F877A

Function : Enhanced Flash Microcontroller

Package : 40 / 44-Pin Type

Maker : Microchip Technology

Image :
PIC16F877A datasheet

Description :

PIC16F873A / PIC16F876A devices are available only in 28-pin packages, while PIC16F874A / PIC16F877A devices are available in 40-pin and 44-pin packages.

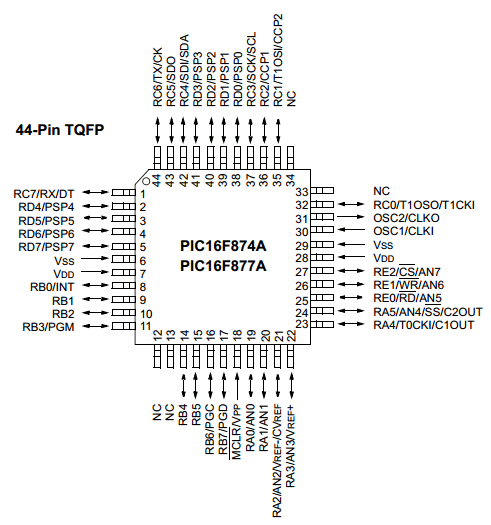

Pinouts :

Analog Features:
• 10-bit, up to 8-channel Analog-to-Digital  Converter (A/D)
• Brown-out Reset (BOR)
• Analog Comparator module with :
- Two analog comparators
- Programmable on-chip voltage reference  (VREF) module
- Programmable input multiplexing from device  inputs and internal voltage reference
- Comparator outputs are externally accessible

CMOS Technology:
• Low-power, high-speed Flash/EEPROM technology
• Fully static design
• Wide operating voltage range (2.0V to 5.5V)


Datasheet PDF Download :
PIC16F877A pdf

Others datasheet of same file : 16F873, 16F874, 16F876, 16F877, 16LF87
