Part Number : OZ9976GN , OZ9976
Function : Offline LCD TV Controller
Package : SOP16
Maker : OZMICRO
Image :
Description :
The OZ9976GN is a high efficiency, Pulse Width Modulation (PWM) controller designed for off line LCD backlight application. It achieves high efficiency power conversion with minimal switching loss using Zero Current Switching (ZCS) technology. OZ9976 applications can operate under fixed or variable operating frequency with ZCS technology.

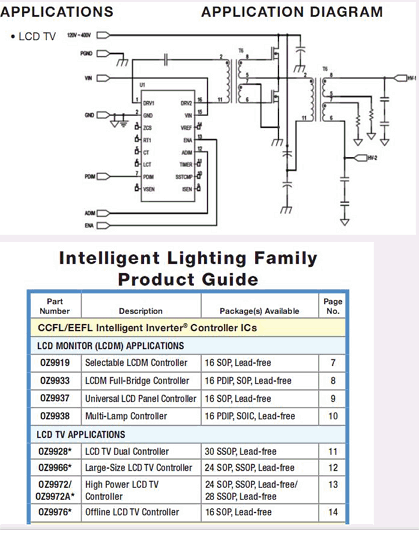

Application Diagram
Features :
1. Offl ine Inverter Controller (IPB)
2. Supports both fi xed and variable frequency applications
3. Half-bridge or push-pull topology
4. Directly drives pulse transformers
5. Dedicated pins for Analog and LPWM dimming
6. User-defi ned minimum operating frequency
7. User-defi ned striking frequency range
8. Open-load, over-voltage, and under-voltage lockout protection
Others datasheet of same file : OZ9976, OZ9976G, 0Z9976, 0Z9976GN
