Part Number : OZ9966
Function : High performance controller
Package : SOP 24 Pin Type
Maker : O2Micro
Image :
Description :
The OZ9966 is a high performance controller designed for large-size LCDTV applications requiring multiple lamps. It achieves a high eff ciency power conversion with minimal switching loss using a full-bridge N-Channel MOSFETtopology. The OZ9966 is ideal for single-side drive or differential drive applications.
OZ9966 allows selection of the Pulse Width Modulation (PWM) dimming polarity, and provides two dedicated pins for analog and PWM dimming control.

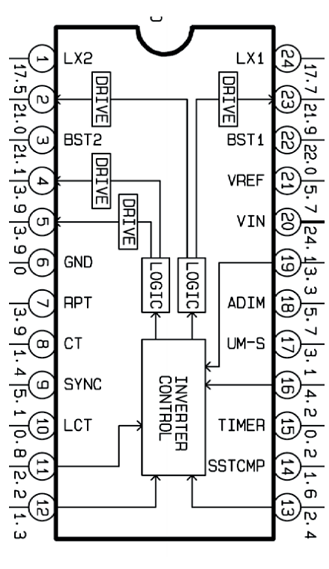

PInout
Features :
• Full-bridge or dual-forward topology
• Integrated high side N-MOSFET driver
• High drive capability and System synchronization
• Dedicated pins for Analog and LPWM dimming
• Selectable PWM dimming polarity
• Constant operating frequency
• Built-in intelligence to manage lamp ignition and normal operation
• Open-lamp, over-voltage, over-current, and under-voltage lockout protection
• User-defi ned striking and shutdown delay timers
• Soft start function
Datasheet PDF Download :
Others datasheet of same file :
OZ-9966, OZ9966SZ, OZ9966SN
