PartNumber : OPA695
This is Ultra-Wideband, Current-Feedback Operational Amplifier.
Block Diagram
Description :
The OPA695 is a very high bandwidth, current-feedback op amp that combines an exceptional 4300V/µs slew rate and a low input voltage noise to deliver a precision, low-cost, high dynamic range Intermediate Frequency (IF) amplifier.
Optimized for high gain operation, the OPA695 is ideally suited to buffering Surface Acoustic Wave (SAW) filters in an IF strip or delivering high output power at low distortion for cable-modem upstream line drivers.
Features
- GAIN = +2 BANDWIDTH (1400MHz)
- GAIN = +8 BANDWIDTH (450MHz)
- OUTPUT VOLTAGE SWING: ±4.2V
- ULTRA-HIGH SLEW RATE: 4300V/µs

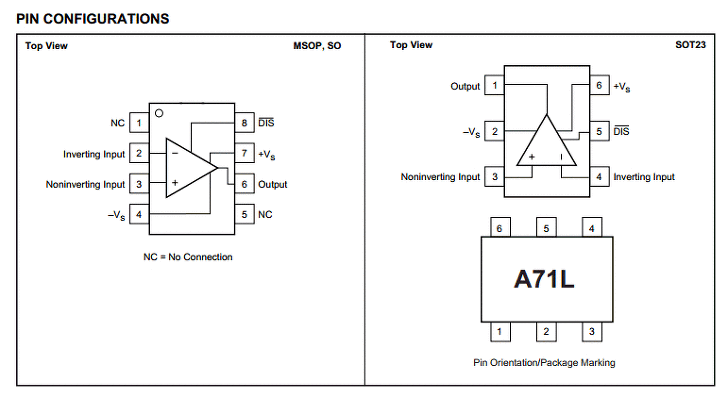

Image and Pinouts :
Official site :
https://www.ti.com/product/OPA695
Datasheet Download
