Part Number : LMR24210

Function : SIMPLE SWITCHER 42Vin, 1.0A Step-Down Voltage Regulator in micro SMD

Package : BGA 28 Pin type

Maker : Texas Instruments

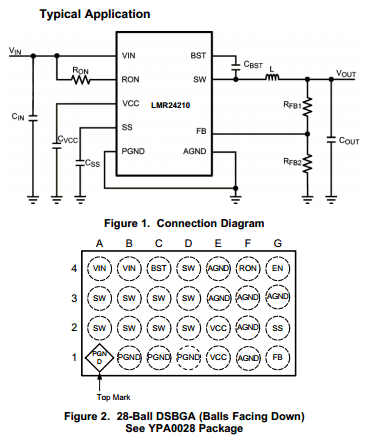

Pinouts :
LMR24210 datasheet

Description :

The LMR24210 Synchronously Rectified Buck Converter features all required functions to implement a highly efficient and cost effective buck regulator. It is capable of supplying 1A to loads with an output voltage as low as 0.8V. Dual N-Channel synchronous MOSFET switches allow a low component count, thus reducing complexity and minimizing board size.

Application Circuts :


Datasheet PDF Download :
LMR24210 pdf

Others datasheet of same file :

LMR-24210, LMR24210TL, LMR24210TL/NOPB,

LMR24210TLX, LMR24210TLX/NOPB



PDF Download
