Part Number : LM301ANG

Function : SINGLE OPERATIONAL AMPLIFIER

Pacakge : DIP, SOP 8 Pin Type

Maker : ON Semiconductor

Pinouts :
LM301ANG datasheet

Description :

A general purpose operational amplifier that allows the user to choose the compensation capacitor best suited to his needs. With proper compensation, summing amplifier slew rates to 10 V/us can be obtained.

Features

1. Low Input Offset Current: 20 nA Maximum Over Temperature Range
2. External Frequency Compensation for Flexibility
3. Class AB Output Provides Excellent Linearity
4. Output Short Circuit Protection
5. Guaranteed Drift Characteristics
6. Pb−Free Packages are Available

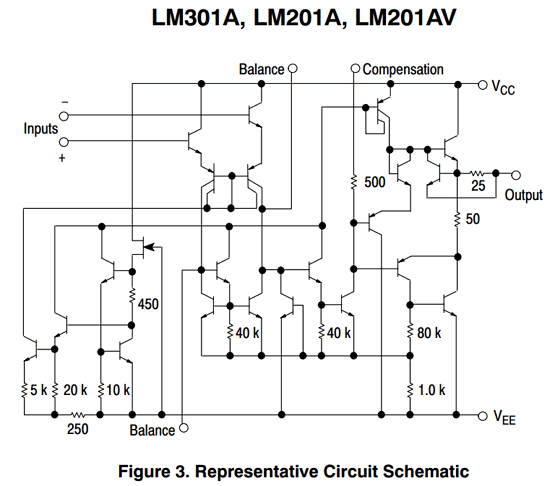

Circuit Schematic




Datasheet PDF Download :
LM301ANG pdf

Others datasheet of same file :

LM201A, LM201ADG, LM201ADR2G, LM201AN, LM201ANG
