Part Number : LA4270
Function : 6W, Dual-Channel AF Power Amplifier / Monolithic Linear IC
Package : SIP 10 Pin Type
Maker : SANYO , Panasonic
Pinouts :
Description :
• High-output dual-channel AF Power IC. (PO=6.0W×2, VCC=25V, RL=8Ω, f=1kHz, THD=1.0%)
• Low distortion (THD=0.1%, VCC=25V, RL=8Ω, f=1kHz, PO=2W).
• Minimum number of external parts requierd (no boot strap capacitor requierd).
• Low pop noise at the time of power switch ON/OFF.
• High ripple rejection (58dB typ).
• Wide supply voltage range (10V to 32V).
• On-chip protector against abnormality (thermal shutdown, overvoltage).
Absolute maximum ratings ( Ta=25°C )
1. Maximum supply voltage : Vcc = 35 V
2. Maximum output current : Io = 3.5 V
3. Allowable power dissipation : Pd = 20 W

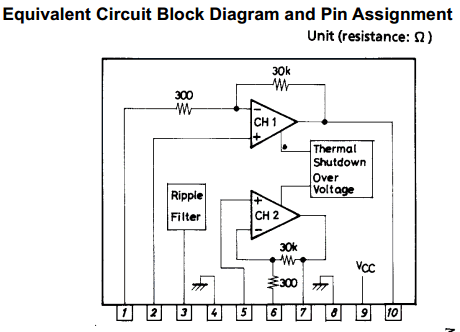

Block Diagram and Pinouts
