Part Number : KSE13007F

Function : 8A, 700V, NPN Transistor

Package : TO-220F Type

Maker : Fairchild Semiconductor

Pinouts :
KSE13007F datasheet

Description :

NPN Silicon Transistor


Featurs

• High Speed Switching
• Suitable for Switching Regulator and Motor Control

High Voltage Switch Mode Application

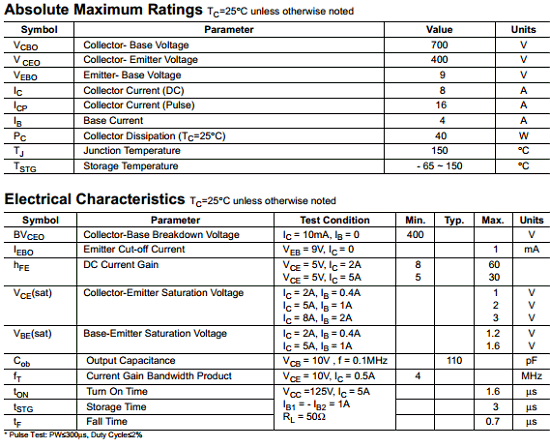

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 700 V

2. Collector to Emitter Voltage : Vceo = 400 V

3. Emitter to Base Voltage : Vebo = 9 V

4. Collector Current : Ic = 8 A

5. Total Dissipation : Pc = 40 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C




Datasheet PDF Download :
KSE13007F pdf

Others datasheet of same file : E13007F,E13007F2,KSE13007F
