Part Number : KSD5017

Function : NPN Transistor (COLOR TV HORIZONTAL OUTPUT APPLICATIONS)

Package : TO-3P Type

Maker : Samsung

Pinouts :
KSD5017 datasheet

Description :

1. NPN Triple Diffused Planar Silicon Transistor

2. High Collector-Base Voltage Vcbo = 1500V

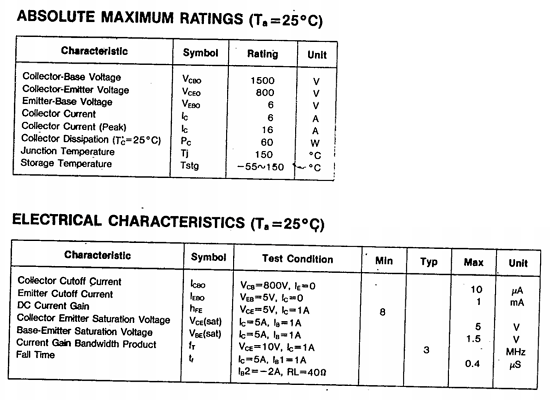

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1500 V

2. Collector to Emitter Voltage : Vceo = 800 V

3. Emitter to Base Voltage : Vebo = 6 V

4. Collector Current : Ic = 6 A

5. Total Dissipation : Pc = 60W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C




Datasheet PDF Download :
KSD5017 pdf

Others datasheet of same file : D5017,KSD-5017
