Part Number : KA3525A

Function : Voltage-mode PWM controller

Package : DIP 16 Pin Type

Maker : Fairchild Semiconductor

Image :
KA3525A datasheet

Description :

The KA3525A is a monolithic integrated circuit that includes all of the control circuits necessary for a pulse width modulating regulator. There are a voltage reference, an error amplifier, a pulse width modulator, an oscillator, an under voltage lockout, a soft start circuit, and the output driver in the chip.

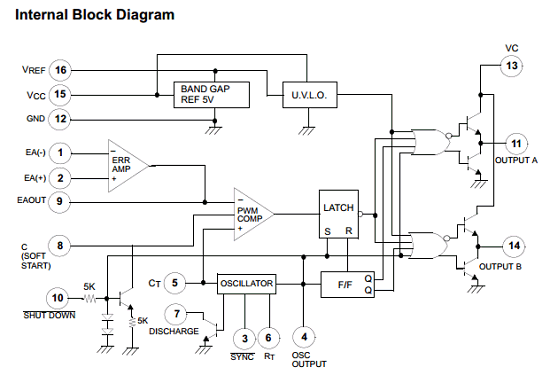

Block Diagram

Features
• 5V ±1% Reference
• Oscillator Sync Terminal
• Internal Soft Start
• Deadtime Control
• Under Voltage Lockout


Datasheet PDF Download :
KA3525A pdf

Others datasheet of same file : KA3525
