Part Number : K2724
Function : 60V, 35A, SWITCHING N-CHANNEL POWER MOSFET
Package : TO-220 Type
Maker : Renesas Electronics
Pinouts :
Description :
This product is N-Channel MOS Field Effect Transistor designed for high current switching applications.
Features :
• Low On-Resistance
RDS(on)1 = 27 mW Max. (VGS = 10 V, ID = 18 A)
RDS(on)2 = 40 mW Max. (VGS = 4 V, ID = 18 A)
• Low Ciss Ciss =1 200 pF Typ.
• Built-in G-S Protection Diode
• Isolated TO-220 package

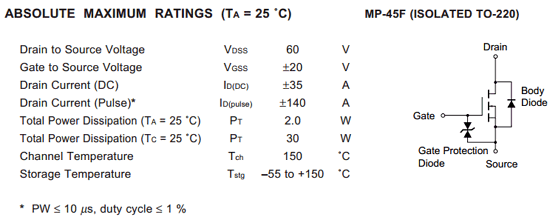

Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage : VDSS = 60 V
2. Gate to source voltage : VGSS = ± 20 V
3. Drain current : ID = 35 A
4. Total Power Dissipation : Pd = 2 W
5. Channel temperature : Tch = 150 °C
6. Storage temperature : Tstg = -55 to +150 °C
Datasheet PDF Download :
Others datasheet of same file : 2SK2724
