Part Number : K1446
Function : 450V, 7A, MOSFET, Transistor
Package : TO-220FI Type
Maker : SANYO , Panasonic
Pinouts :
Description :
N-channel silicon MOSFET
Features :
1. Low ON-state resistance.
2. Ultrahigh-speed switching
3. Micaless package facilitating easy mounting

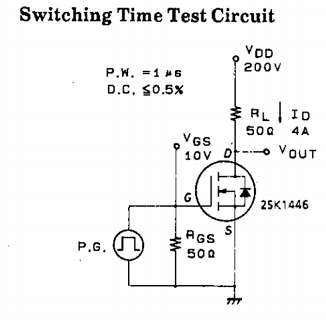

Test Circuit

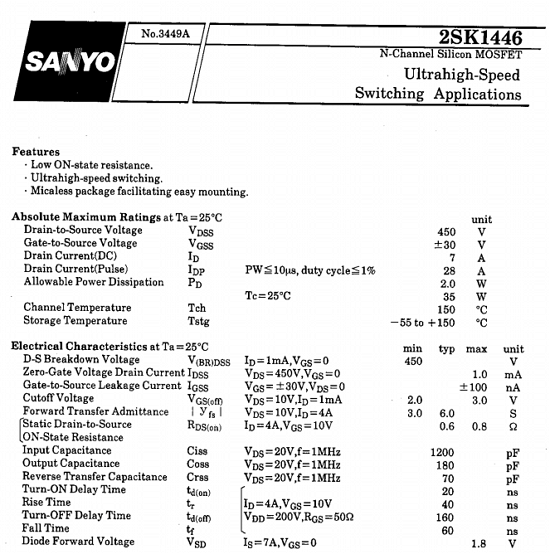

Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage : VDSS = 450 V
2. Gate to source voltage : VGSS = ± 30 V
3. Drain current : ID = 7 A
4. Allowable Power Dissipation : Pd = 2 W
5. Channel temperature : Tch = 150 °C
6. Storage temperature : Tstg = -55 to +150 °C
Applications :
1. Ultrahigh-speed switching
Datasheet PDF Download :
Others datasheet of same file : 2SK1446
