Part Number : HMC832
Function : Fractional-N PLL with Integrated VCO 25 MHz to 3000 MHz
Package : 40-lead 6 mm × 6 mm SMT package: 36 mm2 Type
Maker : Analog Devices
Image :
Description :
The HMC832 is a 3.3 V, high performance, wideband, fractional-N, phase-locked loop (PLL) that features an integrated voltage controlled oscillator (VCO) with a fundamental frequency of 1500 MHz to 3000 MHz, and an integrated VCO output divider (divide by 1/2/4/6/…60/62), that enables the HMC832 to generate continuous frequencies from 25 MHz to 3000 MHz. The integrated phase detector (PD) and delta-sigma (Δ-Σ) modulator, capable of operating at up to 100 MHz, permit wider loop bandwidths and faster frequency tuning with excellent spectral performance.

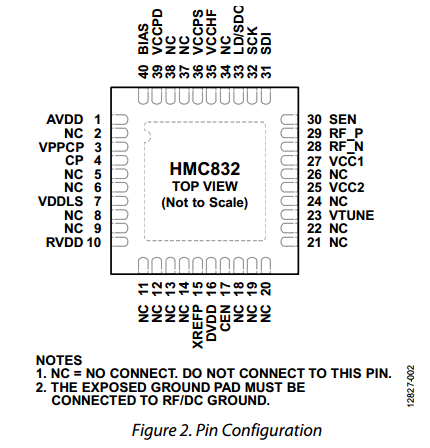

Pinout
Features
1. RF bandwidth:
2. 25 MHz to 3000 MHz
3. 3.3 V supply
4. Maximum phase detector rate: 100 MHz
5. 24-bit step size, resolution 3 Hz typical
6. Exact frequency mode with 0 Hz frequency error
7. Fast frequency hopping

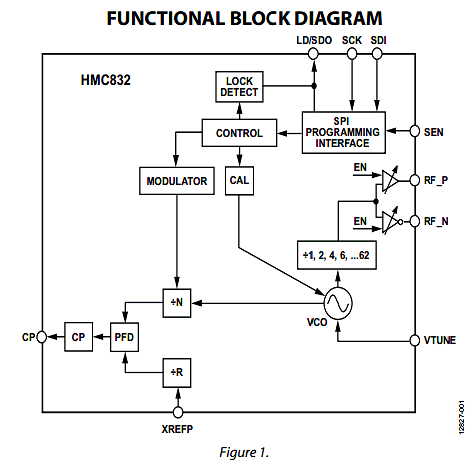

Block Diagram
Datasheet PDF Download :
Others datasheet of same file :
EKIT01-HMC832LP6G, EVAL01-HMC832LP6G,
HMC832LP6GE, HMC832LP6GETR
