Part Number : DRV2604L

Function : 2 to 5.2 V Haptic Driver for LRA and ERM With Internal Memory

Package : DSBGA 9 Pin, VSSOP 10 Pin Type

Maker : Texas Instruments

Image :
DRV2604L datasheet

Description :

The DRV2604L device includes enough integrated RAM to allow the user to pre-load over 100 customized smart-loop architecture waveforms. These waveforms can be instantly played back through I2C or optionally triggered through a hardware trigger terminal.

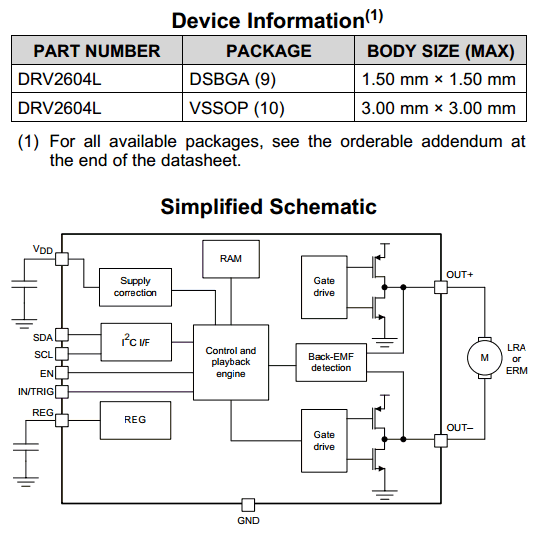

Block Diagram

1. Flexible Haptic and Vibration Driver
  (1) LRA (Linear Resonance Actuator)
  (2) ERM (Eccentric Rotating Mass)
2. I2C-Controlled Digital Playback Engine
  (1) Waveform Sequencer and Trigger
  (2) Real-Time Playback Mode through I2C
  (3) Internal RAM for Customized Waveforms
