Part Number : D1164
Function : 150V, 2A, SILICON POWER NPN TRANSISTOR
Package : TO-252 (MP-3Z) Type
Maker : Renesas Electronics
Image :
Description :
The D1164 is designed for Low Frequency Amplifier and Switching, especially in Hybrid Integrated Circuits.

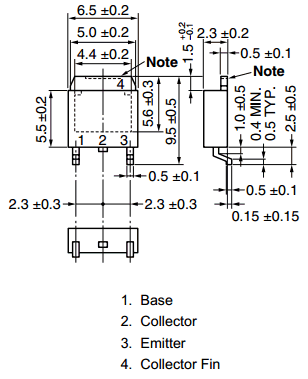

Pinout
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 150 V
2. Collector to Emitter Voltage : Vceo = 60 V
3. Emitter to Base Voltage : Vebo = 8 V
4. Collector Current : Ic = 2 A
5. Total Dissipation : Pc =
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file :
2SD1164, 2SD1164-Z, D1164-Z
