Part Number : D1148

Function : 140V, 10A, NPN PLANAR SILICON TRANSISTOR

Package : TO-3P Type

Maker : Toshiba

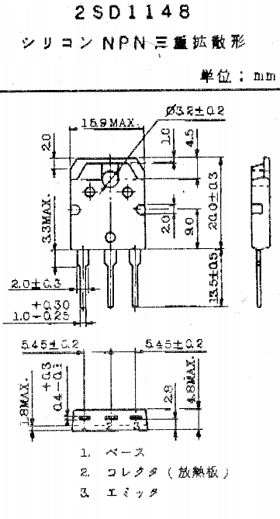

Image :
D1148 datasheet

Description :



* Vceo = 140V.



Absolute maximum ratings ( Ta=25°C )



1. Collector to Base Voltage : Vcbo = 140 V

2. Collector to Emitter Voltage : Vceo = 140 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 10 A

5. Total Dissipation : Pc = 100 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C


Datasheet PDF Download :
D1148 pdf

Others datasheet of same file : 2SD1148
