Part Number : C5508

Marking Code : T79

Function : NPN SILICON RF TRANSISTOR

Package : FLAT-LEAD 4-PIN THIN-TYPE SUPER MINIMOLD (M04)

Maker : NEC , Renesas Technology

Pinouts :
C5508 datasheet

Description :

•  Ideal for low-noise, high-gain amplification applications

•  Flat-lead 4-pin thin-type super minimold (M04) package

• Maximum available power gain: MAG = 19 dB TYP. @f = 2 GHz, VCE = 2 V, IC = 20 mA

• fT = 25 GHz technology

• Flat-lead 4-pin thin super mini-mold (t = 0.59 mm)

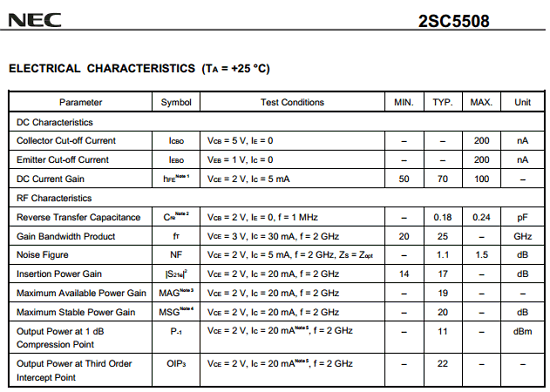

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 15 V

2. Collector to Emitter Voltage : Vceo = 3.3 V

3. Emitter to Base Voltage : Vebo = 1.5 V

4. Collector Current : Ic = 35 mA

5. Total Dissipation : Pc = 115 mW

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -65 ~ +150°C




Datasheet PDF Download :
C5508 pdf

Others datasheet of same file :

2SC5508, 2SC5508-T2, C5508-T2
