Part Number : C4793
Function : 1A, 230V, Silicon NPN Epitaxial Type Transistor
Package : TO-220 Type
Maker : Toshiba
Image :
Applications
1. Power Amplifier
2. Driver Stage Amplifier

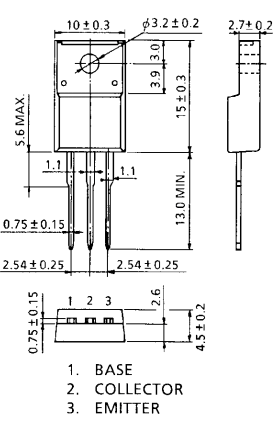

Pinout :
Features
• High transition frequency: fT= 100 MHz (typ.)
• Complementary to 2SA1837
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 230 V
2. Collector to Emitter Voltage : Vceo = 230 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 1A
5. Total Dissipation : Pc = 2 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2SC4793
