Part Number : C4582

Function : 15A, 450V, NPN Transistor

Package : TO-220 Type

Maker : Shindengen

Image :

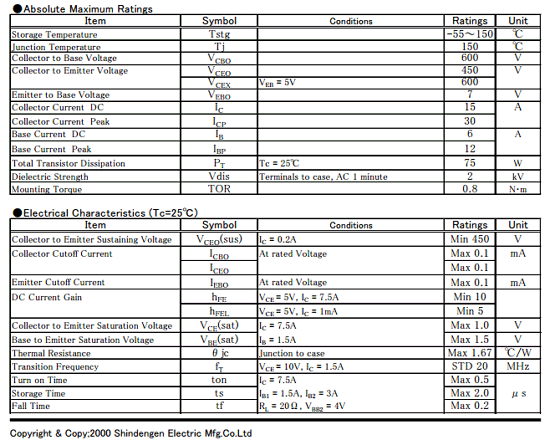

C4582 datasheet

Description :

NPN Switching Power Transistor



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 600 V

2. Collector to Emitter Voltage : Vceo = 450 V

3. Emitter to Base Voltage : Vebo = 7 V

4. Collector Current : Ic = 15 A

5. Total Dissipation : Pc = 75 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C


Datasheet PDF Download :
C4582 pdf

Others datasheet of same file : 2SC4582
