Part Number : C3089
Function : 500V, 7A, NPN Triple Diffused Planar Silicon Transistor
Package : TO-3PB Type
Maker : SANYO , Panasonic
Image :
Description :
* High breakdown voltage (VCBO≥800V).
* Fast switching speed.
* Wide ASO.
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 800 V
2. Collector to Emitter Voltage : Vceo = 500 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 7 A
5. Total Dissipation : Pc = 2.5 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Pinout
Applications :
Switching Regulator

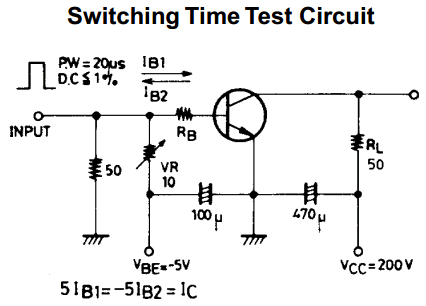

Test Circuit
Datasheet PDF Download :
Others datasheet of same file : 2SC3089
