Part Number : AT49BV161-70TI

Function : 16-megabit (1M x 16/2M x 8) 3-volt Only Flash Memory

Package : TSOP 48 Pin type

Maker : Atmel Corporation

Pinouts :
AT49BV161-70TI datasheet

Description :

The AT49BV / AT49LV16X(T) is a 3.0-volt 16-megabit Flash memory organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. The x16 data appears on I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The memory is divided into 39 sectors for erase operations. The device is offered in a 48-lead TSOP, 45-ball and 48-ball CBGA packages.

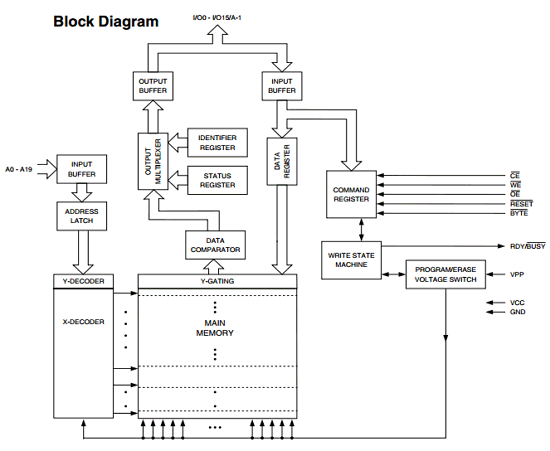

Block Diagram


Datasheet PDF Download :
AT49BV161-70TI pdf

Others datasheet of same file :

AT49BV160, AT49BV160-70CI, AT49BV160-90CI, AT49BV160-90TI
