Part Number : ADM7172

Function : 6.5 V, 2 A, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO

Package : 8-lead 3 mm × 3 mm LFCSP Type

Maker : Analog Devices

Pinouts :
ADM7172 datasheet

Description :

The ADM7172 is a CMOS, low dropout linear regulator (LDO) that operates from 2.3 V to 6.5 V and provides up to 2 A of output current. This high output current LDO is ideal for regulation of high performance analog and mixed-signal circuits operating from 6 V down to 1.2 V rails. Using an advanced proprietary architecture, the device provides high power supply rejection and low noise, and achieves excellent line and load transient response with just a small 4.7 µF ceramic output capacitor. Load transient response is typically 1.5 μs for a 1 mA to 1.5 A load step.

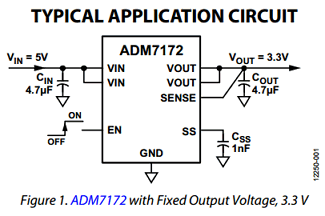

Application Circuits :



Datasheet PDF Download :
ADM7172 pdf

Others datasheet of same file :

ADM7172ACPZ, ADM7172ACPZ-1.3-R7, ADM7172ACPZ-1.8-R7, ADM7172ACPZ-2.5-R7
