Part Number : A1537

Function : 70V, 500mA, PNP Transistor

Package : TO-126ML Type

Maker : SANYO ,  Panasonic

Pinouts :
A1537 datasheet

Description :

PNP Epitaxial Planar Silicon Transistor


Features

1. High fT: fT=700MHz.

2. High breakdown voltage : VCEO=70Vmin.

3 Small reverse transfer capacitance and excellent high-frequency characteristic :
  Cre =3.1pF/NPN, 4.8pF/PNP.


4. Complementary PNP and NPN types.

5. Adoption of FBET process.

6. Micaless type.

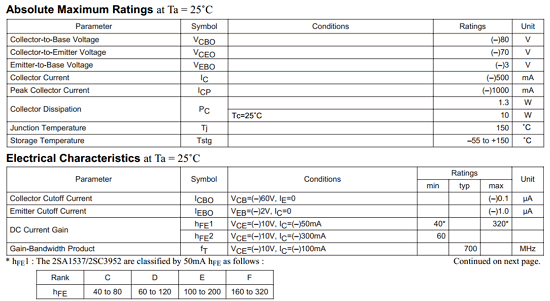

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 80 V

2. Collector to Emitter Voltage : Vceo = 70 V

3. Emitter to Base Voltage : Vebo = 3 V

4. Collector Current : Ic = 500 mA

5. Total Dissipation : Pc = 1.3 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C



Applications :

1. High-Definition CRT Display Video Output


Datasheet PDF Download :
A1537 pdf

Others datasheet of same file :

 2SA1537, 2SC3952, C3952
