Part Number : A1015

Function : PNP general purpose transistor

Package : TO-92 Type

Applications : Audio Frequency General Purpose Amplifier

Maker : Toshiba

Product Image :
A1015 datasheet

Description :

(1)  High voltage and high current: VCEO = −50 V (min),  IC = −150 mA (max)

(2)  Excellent hFElinearity : hFE (2) = 80 (typ.) at VCE = −6 V, IC = −150 mA
 : hFE(IC = −0.1 mA)/hFE(IC= −2 mA) = 0.95 (typ.)

(3)  Low noise: NF = 1dB (typ.) (f = 1 kHz)

(4)  Complementary to 2SC1815.

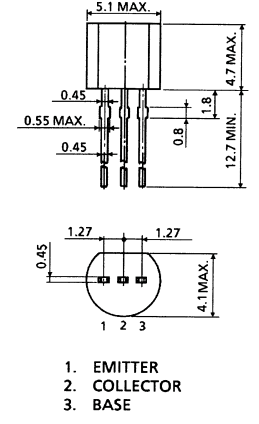

Pinout :

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = - 50 V
2. Collector to Emitter Voltage : Vceo = - 50 V
3. Emitter to Base Voltage : Vebo = - 5 V
4. Collector Current : Ic = - 150 mA
5. Total Dissipation : Pc = 400 mW
6. Junction Temperature : Tj = 125°C
7. Storage Temperatue : Tsg = -55 ~ +125°C


Applications

1. Audio Frequency Amplifier
2. Low Noise Amplifier Applications


Datasheet PDF Download :
A1015 pdf

Others datasheet of same file : 2SA1015
