Part Number : 88E6218
Function : Link Street Integrated Gateway Router with Multi-Port QoS Switch
Package : QFP-216 Pin Type
Maker : Marvell Semiconductor
Image :
Description :
Marvell 88E6218 Chipset.
Processor is ARM9E based, running at 150MHZ, 7 Switch ports, 1MB embedded memory, 16 GPIO ports, 1 UART.
The Link Street 88E6218 device is an advanced single-chip gateway router integrating a high-performance ARM9E CPU at up to 150 MHz for full-wire-speed routing, providing additional CPU bandwidth for network management and security functions, plus a 6-port Fast Ethernet (FE) switching fabric with Quality of Service (QoS) support, and an additional MII port to extend the gateway/router to another network.

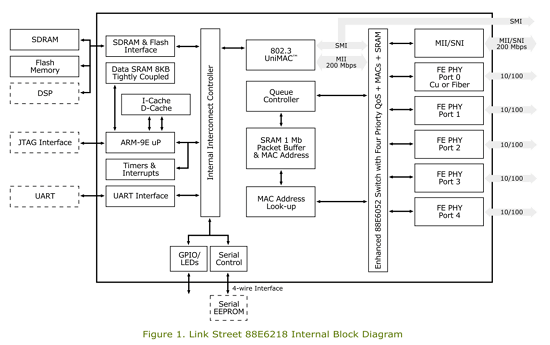

Block Diagram
Datasheet PDF Download :
Others datasheet of same file : 88E-6218
