Part Number : 74LS95
Function : 4-BIT SHIFT REGISTER / LOW POWER SCHOTTKY
Package : DIP, SOIC 14 Pin Type
Maker : Motorola , Freescale
Image :
Description :
The SN54LS95 / 74LS95 / SN74LS95N is a 4-Bit Shift Register with serial and parallel synchronous operating modes. The serial shift right and parallel load are activated by separate clock inputs which are selected by a mode control input. The data is transferred from the serial or parallel D inputs to the Q outputs synchronous with the HIGH to LOW transition of the appropriate clock input. The LS95B is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families.

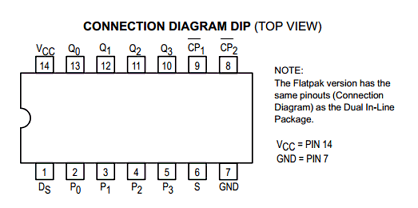

Pinouts :
Features :
• Synchronous, Expandable Shift Right
• Synchronous Shift Left Capability
• Synchronous Parallel Load
• Separate Shift and Load Clock Inputs
• Input Clamp Diodes Limit High Speed Termination Effects
