Part Number : 2YL6
Function : Independent linear lithium battery charger
Package : SOT23-5
Maker : Unspecified
Pinouts :
Description :

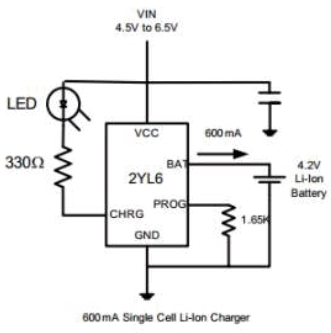

The complete single-cell lithium-ion battery Linear constant current charging IC. It uses minimal SOT-23-5 package, only low external element Pieces, so that it can truly apply to portable applications.
And, is specifically designed for USB power characteristics Meter. Meanwhile, also as an independent line Lithium-ion battery charger.
Features :
• Maximum programmable charge current of 800mA
• no external MOSFET, sense resistor, reverse diode
• constant current / constant voltage mode operation, with thermal protection
• single lithium battery charging via USB port
• preset charge voltage with an accuracy of 1%
• Standby mode 25A current consumption
• 2.9 V trickle charge voltage
