Part Number : 2SK3306
Function : 500V, SWITCHING N-CHANNEL POWER MOSFET
Package : TO-220 Type
Maker : NEC , Renesas Technology
Pinouts :
Description :
The 2SK3306 is N-Channel DMOS FET device that features a low gate charge and excellent switching characteristics, and designed for high voltage applications such as switching power supply, AC adapter.
Features :
1. Low gate charge : QG = 13 nC TYP. (VDD = 400 V, VGS = 10 V, ID = 5.0 A)
2. Gate voltage rating : ±30 V
3. Low on-state resistance : RDS(on) = 1.5 W MAX. (VGS = 10 V, ID = 2.5 A)
4. Avalanche capability ratings
5. Isolated TO-220(MP-45F) package
Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage : VDSS = 500 V
2. Gate to source voltage : VGSS = ± 30 V
3. Drain current : ID = 5 A
4. Total Power Dissipation : Pd = 2 W
5. Channel temperature : Tch = 150 °C
6. Storage temperature : Tstg = -55 to +150 °C

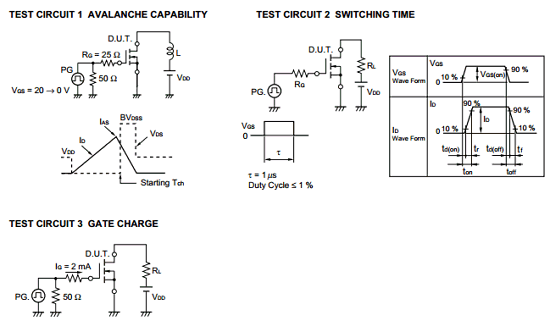

Application Circuits :
