Part Number : 2SK1566

Function : 450V, 7A, MOSFET, Transistor

Package : TO-220FM Type

Maker : Hitachi , Renesas Electronics

Pinouts :
2SK1566 datasheet

Description :

Silicon N-Channel MOS FET

Features :

1.  Low on-resistance

2.  High speed switching

3.  Low drive current

4.  No secondary breakdown

5.  Suitable for switching regulator and DC-DC converter


Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage : VDSS = 450 V

2. Gate to source voltage : VGSS = ± 30 V

3. Drain current : ID = 7 A

4. Channel dissipation : Pch = 35 W

5. Channel temperature : Tch =  150 °C

6. Storage temperature : Tstg = -55 to +150 °C




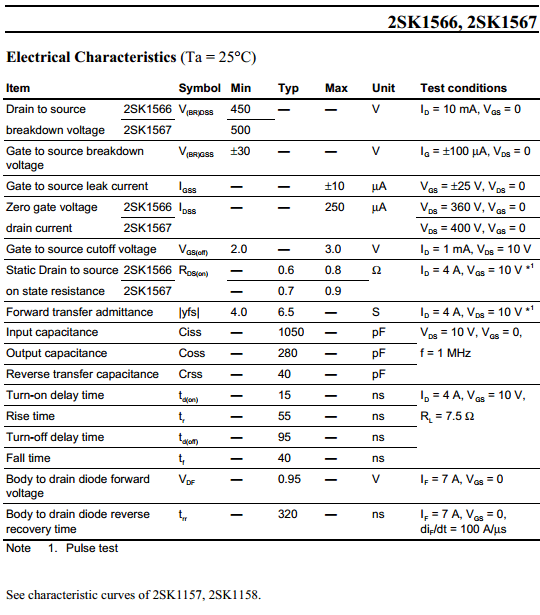

Datasheet PDF Download :
2SK1566 pdf

Others datasheet of same file : 2SK1567, K1566, K1567
