Part Number : 2SD649
Function : 1500V, 3A, NPN Transistor
Package : TO-3 Type
Maker : Inchange Semicondcutor

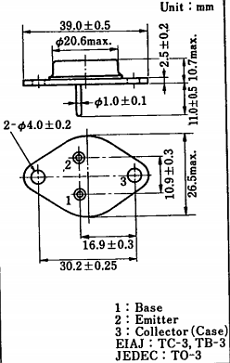

Pinouts :
Description :
The 2SD649 is 1500V, NPN Transistor.
Features
1. High Breakdown Voltage : VCBO= 1500V (Min)
2. High Reliability
Applications :
Designed for line-operated horizontal deflection output applications.

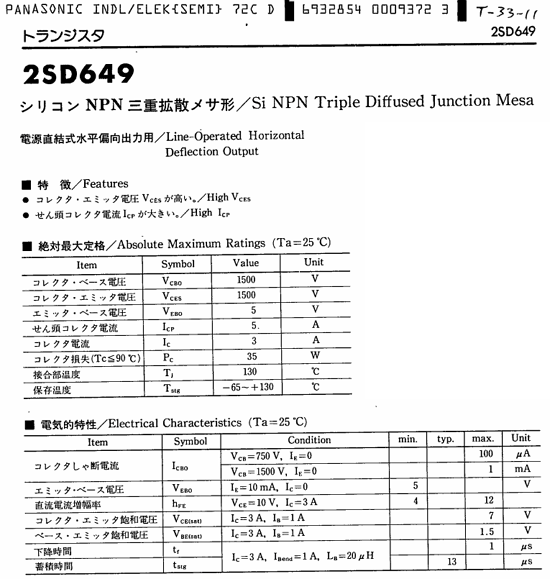

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 1500 V
2. Collector to Emitter Voltage : Vceo = 1500 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 3 A
5. Total Dissipation : Pc = 35 W
6. Junction Temperature : Tj = 130°C
7. Storage Temperatue : Tsg = -65 ~ +130°C
Datasheet PDF Download :
Others datasheet of same file :
2SD602, 2SD602A, D649, D602, D602A
