Part Number : 2SD2047R
Function : 700V, 5A, NPN Bipolar Transistor
Package : TO-3PF
Maker : Fuji Electric

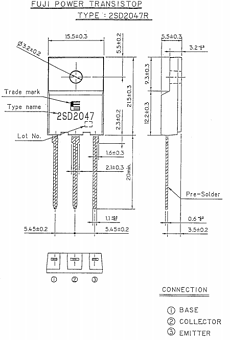

Pinouts :
Description :
NPN Transistor

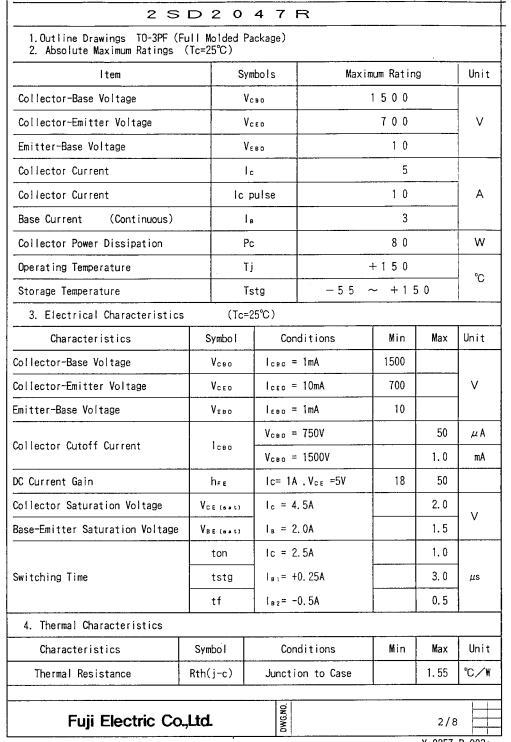

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 1500 V
2. Collector to Emitter Voltage : Vceo = 700 V
3. Emitter to Base Voltage : Vebo = 10 V
4. Collector Current : Ic = 5 A
5. Total Dissipation : Pc = 80 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2SD2047, D2047R
