Part Number : 2SC5027
Function : 300V, 0,1A, NPN Transistor
Maker : Toshiba
Pinouts :
Description :
Silicon NPN Triple Diffused Type Transistor
Features :
1. High Voltage : Vceo = 300V
2. Small Collector Output Capacitance : Cob = 3.0pF (Typ.)
3. Recommended for chroma output and driver applications for line-operated TV horizontal.

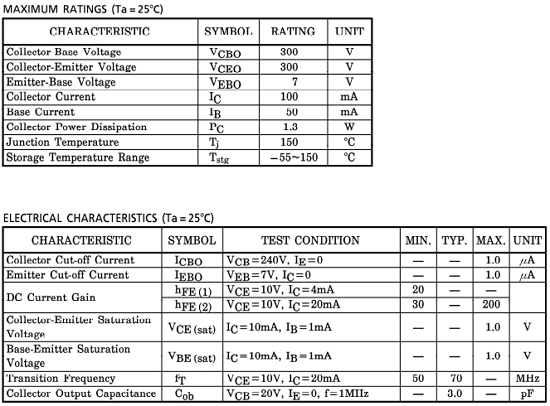

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 300 V
2. Collector to Emitter Voltage : Vceo = 300 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 100 mA
5. Total Dissipation : Pc = 1.3 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Applications :
1. High-Voltage Switching and Amplifier
2. Color TV Horizontal Driver
3. Color TV Chroma Output App
Datasheet PDF Download :
Others datasheet of same file : C5027
