Part Number : 2SC2412K
Function : General purpose NPN transistor (50V, 0.15A)
Package : SOT-346 Type
Maker : ROHM Semiconductor
Pinouts :
Description :
Epitaxial planar type NPN silicon transistor
Features :
1. Low Cob. Cob=2.0pF (Typ.)Cob=2.0pF (Typ.)
2. Complements the 2SA1037AK / 2SA1576A / 2SA1774H / 2SA2029.

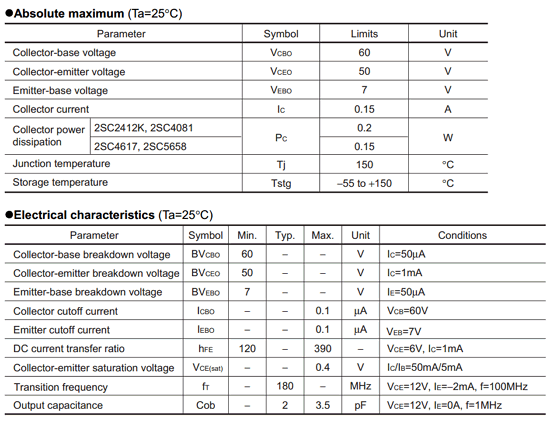

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 60 V
2. Collector to Emitter Voltage : Vceo = 50 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 0.15 A
5. Total Dissipation : Pc = 0.2 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file : 2SC2412, 2SC4081, 2SC4617 ,2SC5658, C2412K
