2SA940 - 150V, 1.5A, PNP Transistor, TO-220

Part Number : 2SA940

Function : 150V, 1.5A, PNP epitaxial silicon transistor.

Package : TO-220 Type

Maker : Wing Shing International Group

Pinouts :


Description :

1. Silicon PNP Transistor

2. Complementary to 2SC2073



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = - 150 V

2. Collector to Emitter Voltage : Vceo = - 150 V

3. Emitter to Base Voltage : Vebo = - 5 V

4. Collector Current : Ic = -1.5 V

5. Total Dissipation : Pc = 25 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C

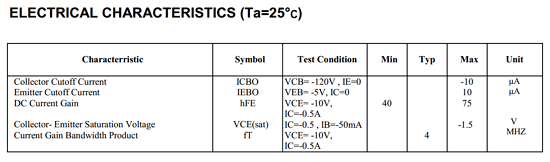

Applications :

1. Power amplifier vertical deflection output.

Datasheet PDF Download :


Others datasheet of same file : 2SA940,A940
