Part Number : 2SA814
Function : Silicon PNP Epitaxial Base Mesa Tyep Transistor
Package : TO-220AB Type
Maker : Toshiba
Pinouts :
Description :
1. High Breakdown Voltage :
V ceo = -120V (2SA814), V ceo = -100V (2SA815)
2. Complementary to 2SC1624 and 2SC1625.
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = - 120 V
2. Collector to Emitter Voltage : Vceo = - 120 V
3. Emitter to Base Voltage : Vebo = - 5 V
4. Collector Current : Ic = - 1 A
5. Total Dissipation : Pc = 15 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C

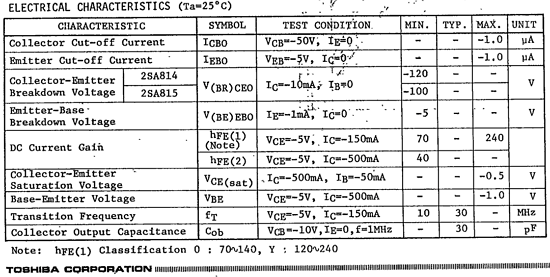

Applications :
1. Medium Power Amplifier
2. Driver stage amplifier
Datasheet PDF Download :
Others datasheet of same file : 2SA815, A814, A815
