2SA1225 PDF - 160V, 1.5A, PNP Transistor, Toshiba

Part Number : 2SA1225

Function : 160V, 1.5A, PNP Transistor

Maker : Toshiba

Pinouts :


Description :

Silicon PNP Epitaxial Type Transistor

Features :

•  High transition frequency: fT= 100 MHz (typ.)
•  Complementary to 2SC2983

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = - 160 V

2. Collector to Emitter Voltage : Vceo = - 160 V

3. Emitter to Base Voltage : Vebo = - 5 V

4. Collector Current : Ic = - 1.5 A

5. Total Dissipation : Pc = 1 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C

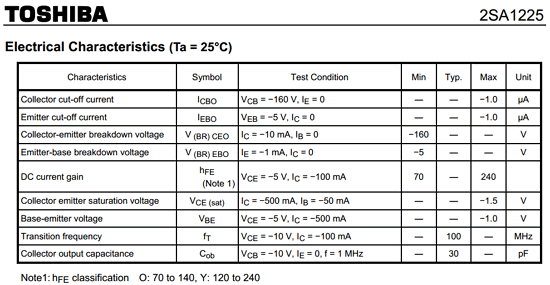

Applications :

Datasheet PDF Download :


Others datasheet of same file : 2SA1225-Y, A1225, A1225-Y
