Part Number : 2272-M2S
Function : Remote Control Decoder
Package : Available in DIP and SOP 18 Pin Type
Maker : Princeton Technology
Pinouts :
Description :
PT2272, 2272-M2S is a remote control decoder paired with PT2262 utilizing CMOS Technology. It has 12-bit of tri-state address pins providing a maximum of 531,441 (or 312) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. PT2272 is available in several options to suit every application need: variable number of data output pins, latch or momentary output type.

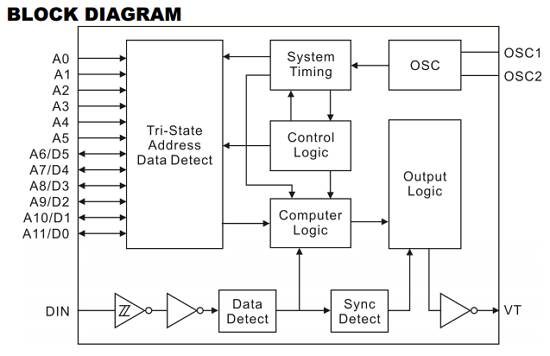

Block Diagram
Datasheet PDF Download :
Others datasheet of same file : 2272M2S, PT2272, PT2272-L3 ,PT2272-L3S, PT2272-L4
