Part Number : 1.5SMCJ100CA

Function :  100V, Transient Voltage Suppressor,  Peak Power 1500 Watts, Diode, Rectifier

Package : DO-214AB, Surface Mount Type

Maker : PANJIT INTERNATIONAL

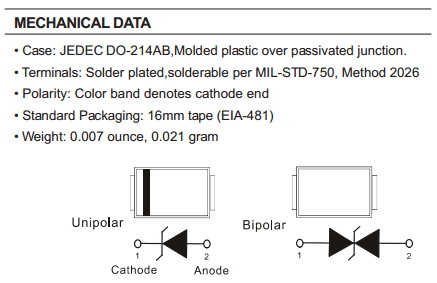

Pinouts :
1.5SMCJ100CA datasheet

Description :

1. For surface mounted applications in order to optimize board space.

2. Glass passivated juction

3. Low inductance




Mechanical Data

1. Case: JEDEC DO-214AB, Molded plastic over passivated junction

2. Terminals: Solder plated , solderable per MIL-STD-750, Method 2026

3. Polarity: Color band denotes positive end ( cathode) except Bidirectional.

4. Standard Packageing: 16mm tape per (EIA-481)

5 Weight: 0.007 ounces, 0.21 gram


Datasheet PDF Download :
1.5SMCJ100CA pdf

Others datasheet of same file :

1.5SMCJ10, 1.5SMCJ100, 1.5SMCJ100A, 1.5SMCJ100, 1.5SMCJ10A
