Part Number : VCA3
Function : 3.3, 5.0 volt CMOS Crystal Oscillator
Maker : Vectron International
Image :
Description :
Vectron’s VCA3 Crystal Oscillator (XO) is quartz stabilized square wave generator with a CMOS output, operating off a 3.3 or 5.0 volt supply.
The VCA3 uses fundamental or 3rd overtone crystals, for output frequencies < 80MHz, resulting in low jitter performance, typically 0.5ps rms in the 12 kHz to 20MHz band.
Features :
1. CMOS output
2. Output frequencies to 160MHz
3. Tri-stateoutput for board test and debug
4. 0/70 or –40/85 °C operating temperature
Applications
1. SONET/SDH/DWDM
2. Ethernet, Gigabit Ethernet
3. Storage Area Network
4. Digital Video
5. Broadband Access
6. Microprocessors/DSP/FPGA
Datasheet PDF Download :
Others datasheet of same file :

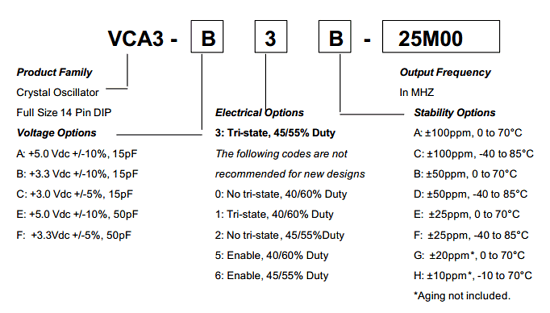

VCA3-A0A-25M00, VCA3-A0B-25M00, VCA3-A0C-25M00, VCA3-A0D-25M00
