SN74LS266N
Quad 2-input exclusive-NO gates with open collector outputs 14-PDIP 0 to 70

PDF Datasheet
DistributorStock110100Link
Rochester Electronics2,1371.23Visit Site
Verical2,134Visit Site
DigiKey212.331.7261.4099Visit Site
Mouser111.981.461.18Visit Site
Win Source2,090Visit Site
Worldway Electronics20,0491.1041.0831Visit Site
Esaler Electronic121.981.961Visit Site
    Powered by Octopart

Description

:

The 74LS266 is comprised of four independent 2-input exclusive-NOR gates with open-collector outputs. The open-collector outputs permit tying outputs together for multiple-bit comparisions.

Features :

1. Can Be Used as a 4-Bit Digital Comparator

2. Input Clamping Diodes Simplify System Design

3. Fully Compatible with Most TTL Circuits

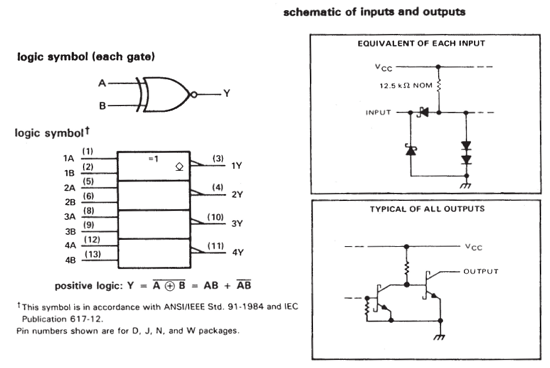

Block Diagram :



Official Homepage : https://www.ti.com/product/SN74LS266

Others datasheet of same file : 54LS266, 74266, 74LS266D, 74LS266N
